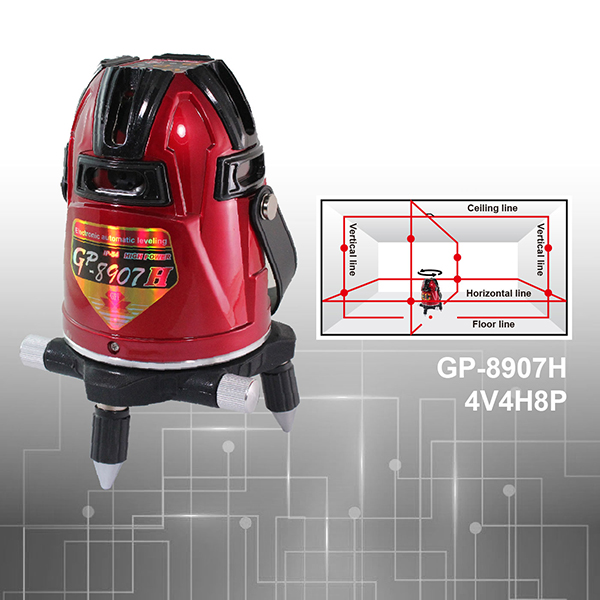

GP-8907H
Red Beam
4V4H8P
Operation Manual DM
◎ Eletronic Tilt Sensor Compensator ensure more stable self leveling in high building.
◎ 3D Full Laser beams to save more than 60% working time and 50% manpower.
◎ Adapt Voice Alarm System
◎ Multi-Power: AA、Ni-MH、AC Power
GP-8907H
GP-8907H
GP-8907H
GP-8907H
GP-8907H
Model No. GP-8907H
Laser Beam 4V4H1D8P
Laser Wavelength
635nm for lines, 650nm for DP
IP grade IP-54
Laser class Class 2M for Lines / Class 3R for points
Accuracy ±1mm/10m
Leveling range ±3.5°
Working range Dia. 75m (with detector)
Power supply Li-ion(with power capacity LED)
Working Temperature -10℃~+50℃
Size Φ108x200mm
Weight 1.3kg(with battery)
